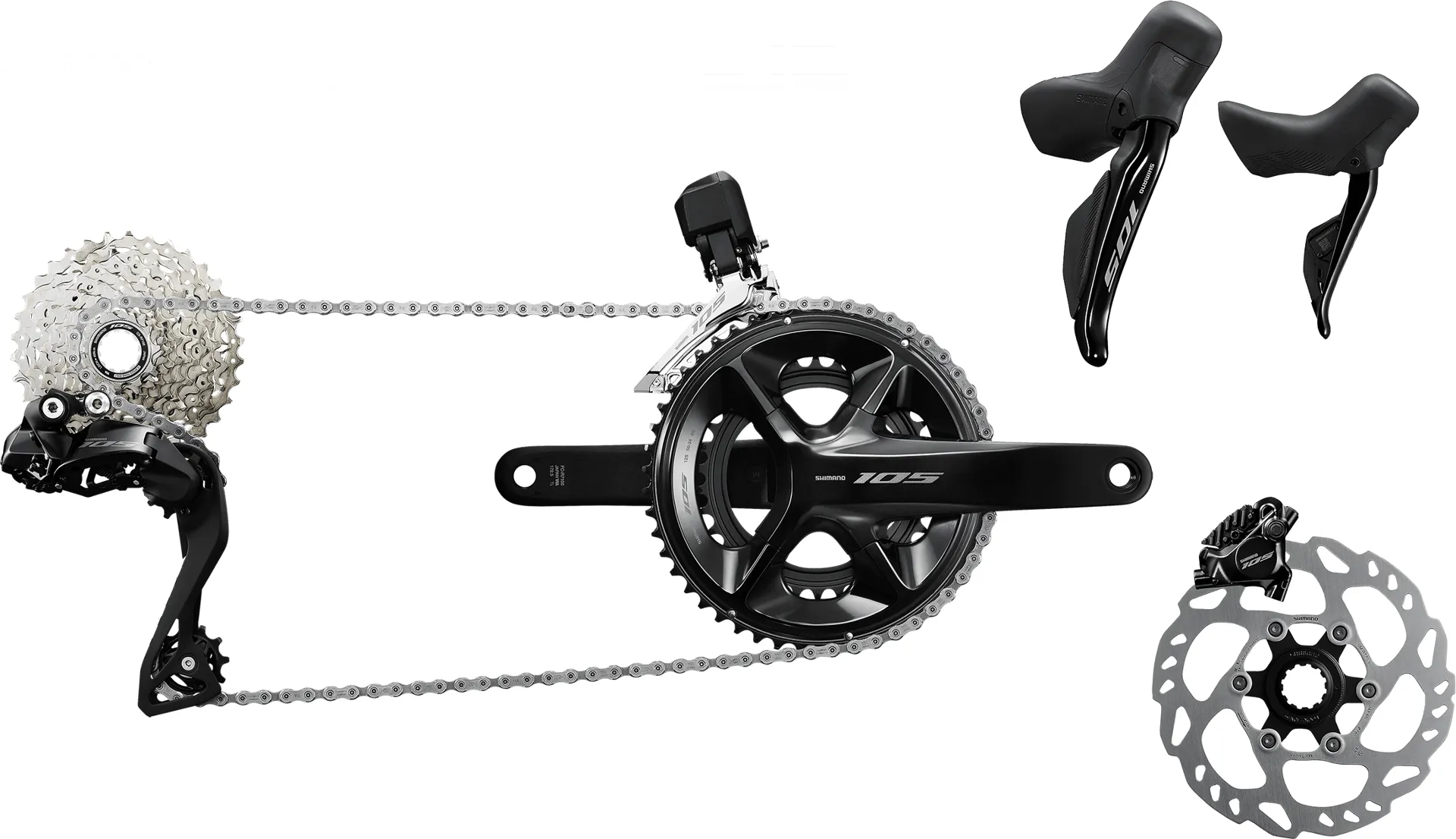

SHIMANO 105 Di2: Science of Speed
Just as with its original groundbreaking electronic Digital Integrated Intelligence shifting system launched in 2009, this latest version of Shimano Di2 features critical functional enhancements, including a wireless cockpit and the jump to 12-speed. And it’s all been done without any sacrifice to the fast, precise and reliable shifting riders have come to expect from all Shimano road groups. Changing gears is simple and consistent all the time, every time.
- Evolved Di2 Platform – Completely redesigned Di2 system delivers fast shifting in a wireless cockpit design
- Most Advanced Drivetrain – Optimized 12-speed gearing for unmatched efficiency and seamless shifting
- Refined Interface and Ergonomics – The optimal balance of comfort, aerodynamics, and aesthetics, Shimano 105 offers secure and comfortable ergonomics, and a cleaner cockpit aesthetic
- Enhanced Brake System – Improving braking control, the new Shimano 105 brake system offers a quieter, maintenance-friendly system
SHIMANO 105 Di2: Wireless Where it Matters
Shimano 105 Di2 utilizes a hybrid system, featuring a wireless cockpit paired with a wired connection between a single, seat-tube-stored battery and the front and rear derailleurs, ensuring absolute reliability in all conditions. And just like Dura-Ace and Ultegra, the Shimano 105 Di2 system is highly customizable using Shimano’s user-friendly E-TUBE PROJECT App on your smartphone.
With E-TUBE PROJECT you can set-up your drivetrain just the way you like it, adjusting shift speed, altering the number of shifts per button actuation, and utilizing Synchronized and Semi-Synchro shifting functionality.
You can also pair the system with third party cycling computers such as Garmin and Wahoo, which allow you to monitor gear selection or battery status.
SHIMANO 105 Di2: Refined Interface and Ergonomics
The new Shimano 105 dual control levers feature unparalleled ergonomics refined with pro rider feedback where a raised hood peak and new lever shape enhance comfort and control in every riding position. Braking is also optimized thanks to a lighter, smoother lever action and expanded braking control area.
The levers utilize Shimano’s proprietary wireless integrated circuit that features high security, fast processing speed and low power consumption. Contrast that with other wireless platforms and you get a significant decrease in interference probability, faster shift speeds, and longer battery life. And by using a single, internally housed rechargeable battery, charging is straightforward, and the battery is protected, further ensuring stable and reliable shifting at all times.
ST-R7170 Shifter
- Wireless Di2 connectivity
- 2x12-speed Dual-Control lever
- Refined hood for improved ergonomics and aerodynamics
- Improved button access

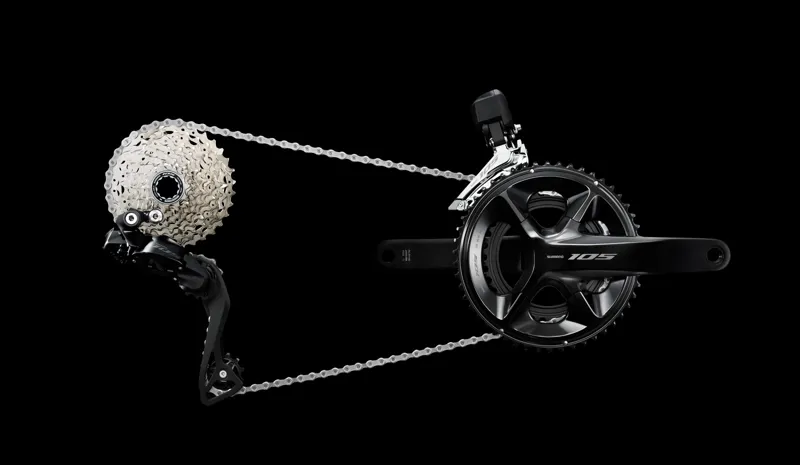

SHIMANO 105 Di2: Advanced Drivetrain Technology
By making the move to a 12-speed cassette, Shimano 105 R7100 Series riders now have the high and low gearing they need, along with an intelligent progression of gear steps in between. This is the result of optimized drivetrain components, which include 11-34 and 11-36 cassette options and 50-34 and 52-36 cranksets. Together they deliver low, even sub 1:1, gear combinations that let riders take on steeper slopes and better control their efforts because gear steps are more closely spaced allowing you to always find a comfortable cadence.
The new system is also backwards compatible, meaning you can use your existing 11-speed freehub-equipped wheels with the new Shimano 105 Di2 drivetrain.
FC-R7100 Crank
- HOLLOWTECH II Crank Set
- 2x12-speed
- Chainring combination 50-34T
CS-R7100 Cassette
- 12-speed
- 11-tooth small cog for optimal efficiency
- Optimized “Sweet Spot” Gears for pedalling efficiency
- Compatible with 11-speed freehub bodies
- 11-34T

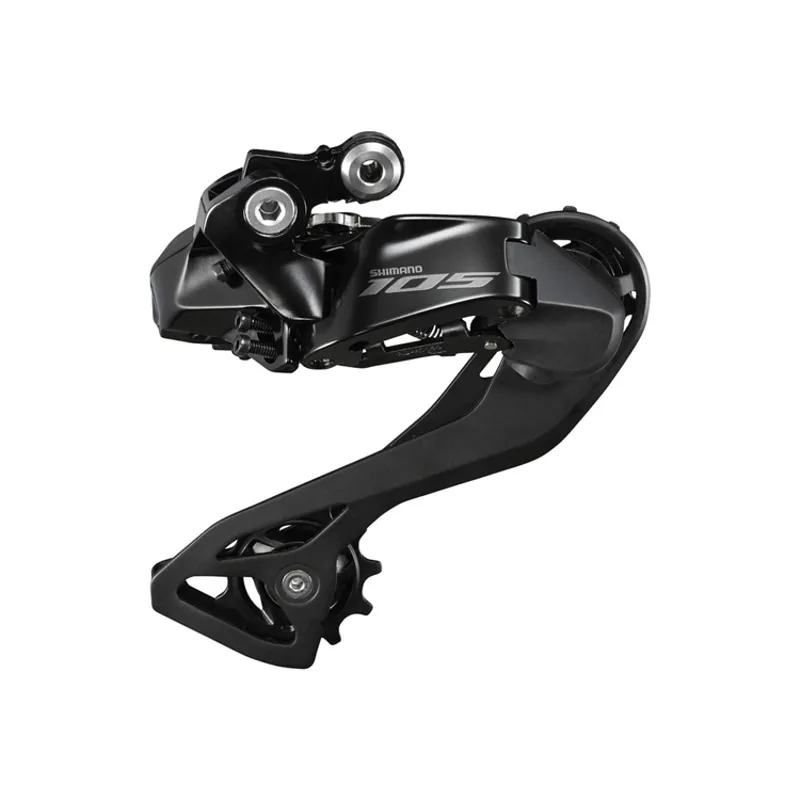

RD-R7150 Rear Derailleur
- SHIMANO SHADOW Rear Derailleur
- Integrated D-FLY connectivity
- 12-speed Di2 technology
- Compatible with 11-34 and 11-36T cassettes

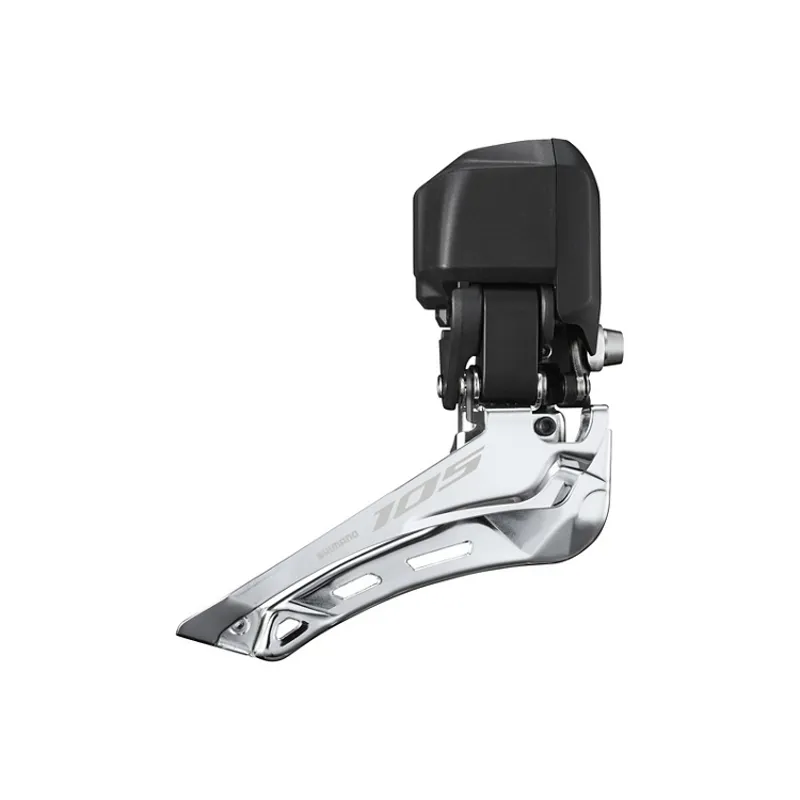

FD-R7150 Front Derailleur
- 12-speed Di2 technology
- Fast, precise front shifting
SHIMANO 105 Di2: Better Braking
Just as with the latest Dura-Ace and Ultegra groupsets, the new Shimano 105 features a revamped braking system that’s quieter, easier to maintain, and supremely controlled and powerful. Top line features include a fast initial contact point with a wider control zone and 10% wider pad-to-rotor clearance assuring noiseless operation. Home mechanics will also appreciate a more user-friendly bleed process, which can be done without removing the calliper from the frame.

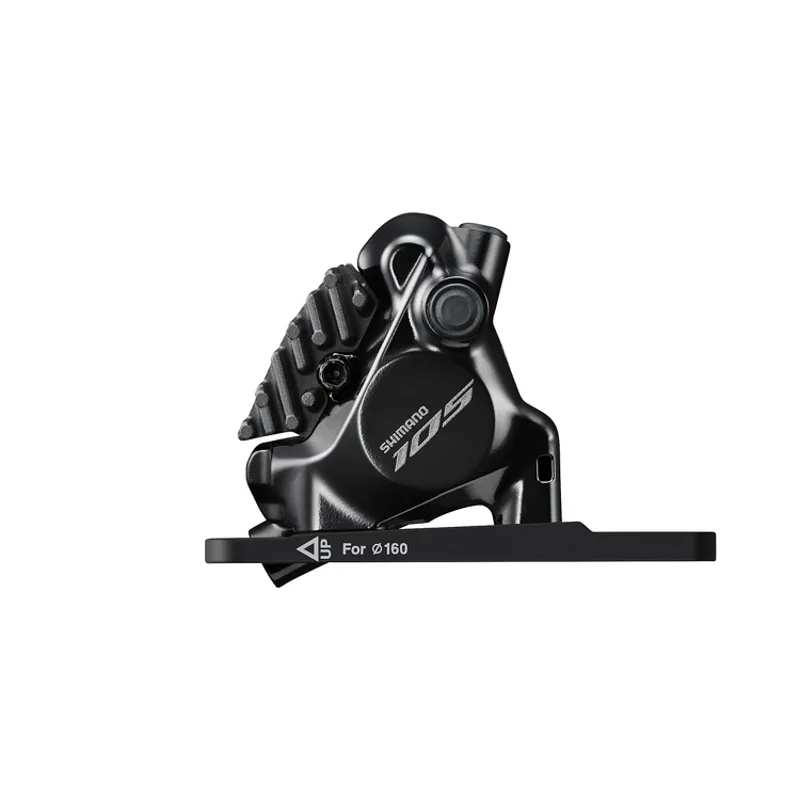

BR-R7170 Brakes
- More fine-tuned control and heightened braking performance
- 10% wider pad clearance
- Easier bleeding process
